Drilling Equipment and Tool

  • BW-160 Mud Pump

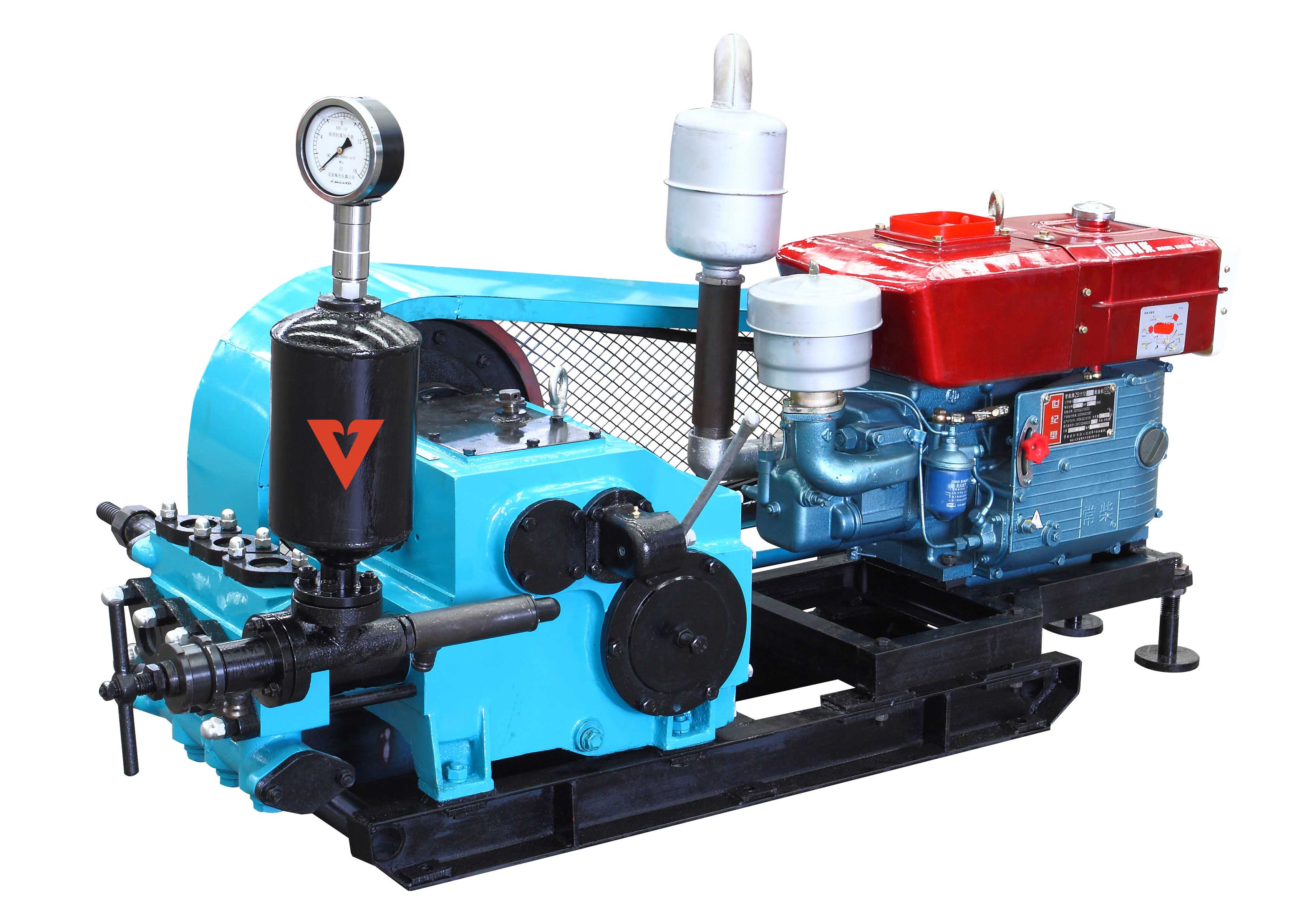

BW-160 Mud Pump

BW-160 Mud Pump

  • Product description: BW-160 Mud Pump
  • INQUIRY

BW-160/ mud pump is a light horizontal triplex single action reciprocating piston pump,it has many good features like small size,light weight,long life,easy to be transported, good performance,and using many standard or universal industrial parts.It is suitable for geological prospection .Geological engineering drilling within 1000 meters in various like railway,water conservance, metallurgy,construction and geology.





Name
BW-160/10
Type  horizontal triplex reciprocating acting
Cylinder diameter 70mm
Stroke 70mm
Speed(r/min) 200 132 83 55
Displacement(l/min) 160 107 67 44
Pressure(Mpa) 2.5 4 6.5 10
Input torque 150N*m
Input speed 610r/min
Power(KW) 11(electric motor)
Power(KW) 14.7(diesel engine)
Suction pipe diameter 51mm
Drain pipe diameter 25mm
Weight(Kg) 500(include electric motor)
560(include diesel engine)
Dimengsion 1525×830×950mm
1920×830×1000mm
