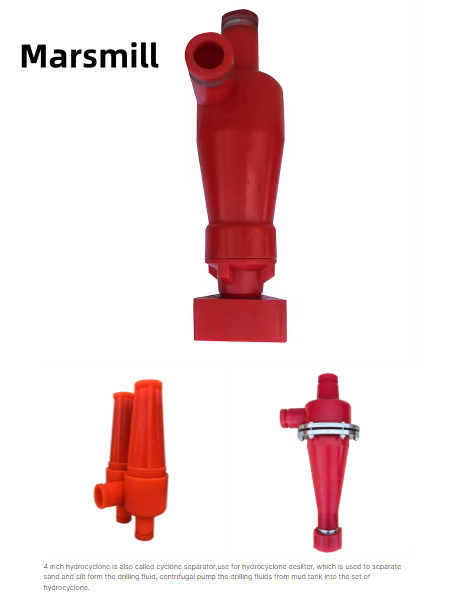

Drill Mud Desilter Hydrocyclone

  As a common separation and classification equipment, the working principle of cyclone is centrifugal sedimentation. When the two-phase (or three-phase) mixture to be separated enters the cyclone tangentially from the periphery of the cyclone at a certain pressure, a strong three-dimensional elliptical strong rotational shear turbulent motion is generated.

  Due to the particle size difference (or density difference) between coarse particles (or heavy phase) and fine particles (or light phase), the centrifugal force, centripetal buoyancy, fluid drag force and other sizes are different, and most of the coarse particles (or heavy phase) are discharged through the bottom flow port of the cyclone, while most of the fine particles (or light phase) are discharged by the overflow pipe, so as to achieve the purpose of separation and classification.

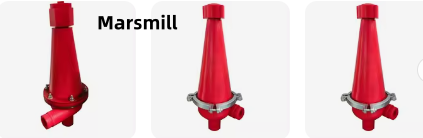

Different type 4 inch desilter hydrocyclone
