Welcome: MARSMILL TECH CO.,LTD.



Drilling Equipment and Tool

  • TRICONE BIT
TRICONE BIT

TRICONE BIT

  • Product description: Tricone Bit
  • INQUIRY

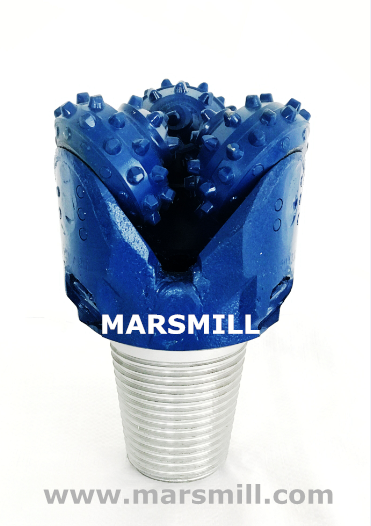

Tricone Bit



SEQ Size Mill Tooth Bit TCI Bit
inch mm Weight (KG) Weight (KG)
1 3 7/8                98.4                             5                             6
2 4 5/8              117.5                             6                             7
3 5 7/8              149.2                           17                           18
4 6              152.4                           18                           20
5 6 1/2              165.1                           19                           22
6 7 7/8              200.0                           29                           30
7 8 1/2              215.9                           35                           38
8 8 3/4              222.2                           36                           40
9 9 1/2              241.3                           57                           59
10 9 7/8              250.8                           58                           60
11 10 5/8              269.9                           66                           74
12 12 1/4              311.1                           85                         111
13 13 5/8              346.1                         118                         120
14 14 3/4              374.6                         140                         160
15 17 1/2              444.5                         230                         255
16 20              508.0                         428                         443
17 22              558.8                         520                         560
18 26              660.4                         720                         810
