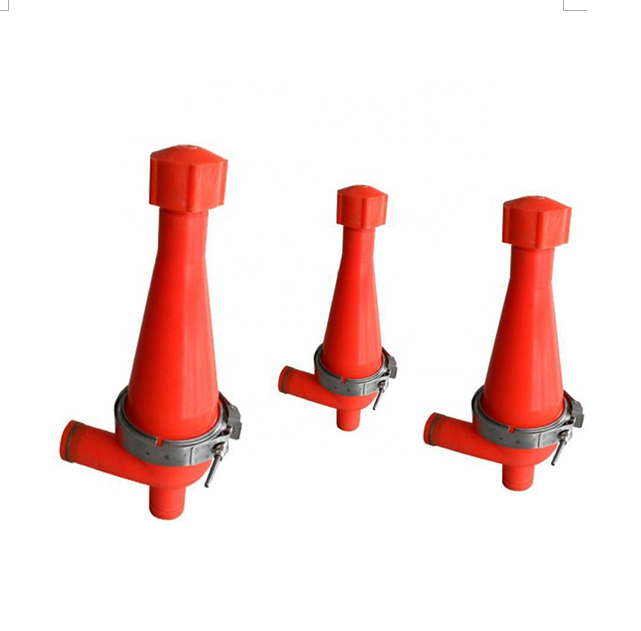

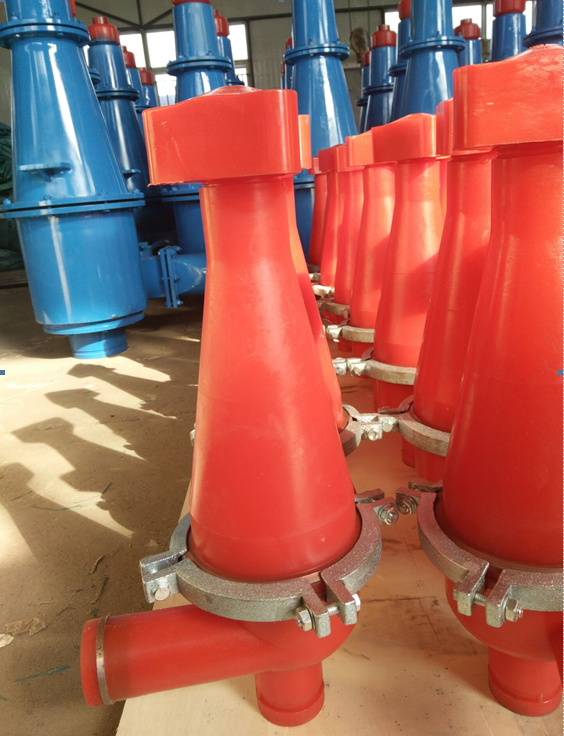

4 inch hydrocyclone and parts

Product description: hydrocyclone , cyclone ,4 inch hydrocyclon
INQUIRY

There are two outlets on the hydrocyclone shaft: the bottom is small (underflow or down) and the top is larger (overflow or acceptance). The underflow is usually a denser or thicker portion, while the overflow is a lighter or more fluid part. Centrifugal pumps are used to pump drilling fluid from a mud tank to a group of hydrocyclones. The RL solids control has flexible options for 1, 2 or 3 hydrocyclone desanders of different capacities, and the desilter has flexible options for 8 or 10, 12, 16 hydrocyclones of different capacities. Desander was installed after the mud shaker and degasser, but before the mud was removed. Desander removes abrasive solids from the drilling mud that cannot be removed through the mud shaker.

Model	Inner diameter(mm)	Feed pressure(MPa)	Treating capacity(m³/h)
FX50	50	0.1~0.6	2~5
FX75	75	0.1~0.6	4~10
FX100	100	0.1~0.4	8~20
FX125	125	0.1~0.8	8~20
FX150	150	0.08~0.3	14~35
FX200	200	0.06~0.3	25~40
FX250	250	0.06-0.3	40~80
FX300	300	0.06~0.2	45~90
FX350	350	0.06~0.2	70~160
FX400	400	0.06~0.2	100~170
FX500	500	0.04~0.2	140~240
FX660	660	0.04~0.15	260~450
