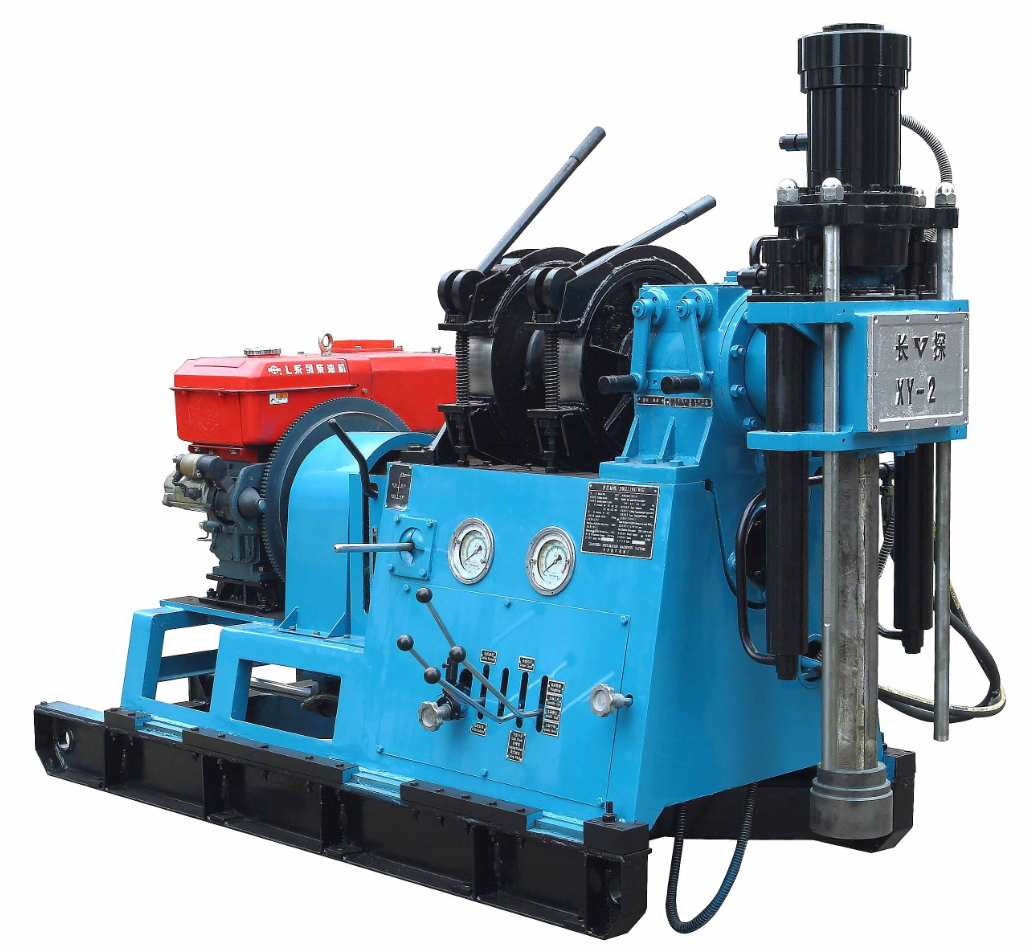

XY-2 drilling rig is a shallow hole drilling rig,it can be applied both in large and small caliber core drilling with alloy or diamond bits,and can also be used in engineering construction such as construction engineering,water and electricity engineering,high way,railway,ports.
|
1,Drilling Capacity |
||||||
|
Core drilling |
||||||
|
Drill rod type |
drill rod size |
Driling depth |
||||
|
Drilling rod (China) |
Inner thicken drilling rod |
42mm |
400m |
|||
|
50mm |
300m |
|||||
|
60mm |
240m |
|||||
|
Wire-line drilling rod |
55.5 mm |
380m |
||||
|
71mm |
270m |
|||||
|
89mm |
210m |
|||||
|
DCDMA drilling rod |
Wire-line drilling rod
|
BQ drill rod |
400m |
|||
|
NQ drill rod |
270m |
|||||
|
HQ drill rod |
180m |
|||||
|
PQ drill rod |
130m |
|||||
|
2,Spindle Turnable Angle |
0°~360° |
|||||
|
3,Power |
Type |
Power |
R.Speed |
Weight |
||
|
(1)Electric Motor |
Y180M-4 |
18.5KW |
1470 r/min |
182kg |
||
|
(2)Diesel engine |
L32 |
18.5KW |
1800 r/min |
212kg |
||
|
4,Rotary Table |
||||||
|
Type:Double-cylinder feeding and mechanical rotation |
||||||
|
Spindle diameter |
φ60mm |
|||||
|
Spindle speed: |
||||||
|
Forward(r/min) |
60 105 165 228 235 405 638 880 |
|||||
|
Reverse(r/min) |
47 182 |
|||||
|
Max torque |
2700N·m |
|||||
|
Feeding travel of spindle |
550mm |
|||||
|
Max uplifting force of spinde |
50KN |
|||||
|
Max feeding force of spindle |
37KN |
|||||
|
5,Hoist |
||||||
|
Type:Planetay gear transmission system |
||||||
|
Diameter of wire rope |
φ14mm |
|||||
|
Robbin capacity |
45m(6layer) |
|||||
|
Max lifting force (single rope) |
30KN |
|||||
|
Lifting speed |
||||||
|
Hoisting velocity(m/s)(second layer) |
0.41 0.71 1.13 1.56 |
|||||
|
6,Clutch |
||||||
|
Type: A typical 130-type vehicle-specifc dry single-disc friction clutch |
||||||
|
7,Hydraulic System |
||||||
|
(1) System pressure |
||||||
|
Rated pressure |
8Mpa |
|||||
|
Max Pressure |
10Mpa |
|||||
|
(2)Oil pump |
||||||
|
Oil gear pump CBF-F420-ALPR |
||||||
|
Displacement |
20mL/r |
|||||
|
Rated Speed |
1500r/min |
|||||
|
Rated pressure |
16Mpa |
|||||
|
Max Pressure |
20Mpa |
|||||
|
8,Frame |
||||||
|
Sliding type(with base frame) |
||||||
|
Movable travel of dill |
420mm |
|||||
|
Distance between drill and-hole-opening |
260mm |
|||||
|
9,Dimension(L×W×H) |
2330×1050×1620mm |
|||||
|
10,Weight(without engine) |
980kg |
|||||
