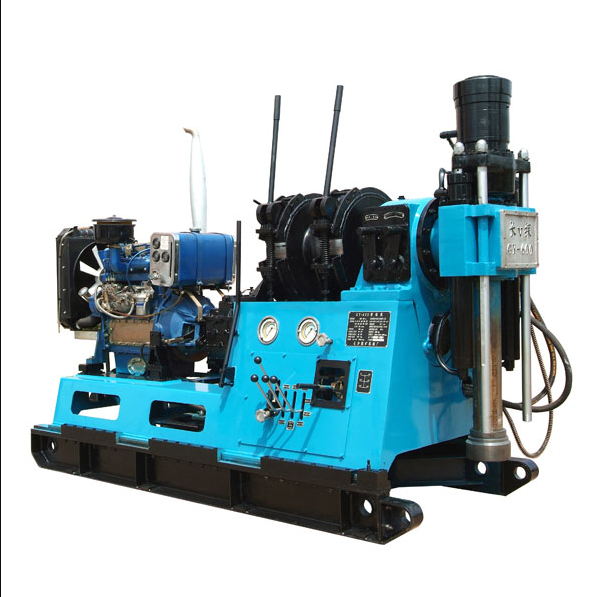

XY-4 is a core drilling rig for middle and shallow hole. It not only can be used for hard alloy drilling, engineering geological reconnaissance, drilling of fluid mineral in superfical layer and natural gas exploitation, but aslo can apply to small diameter drilling of metal or nonmetallic materials and solid deposit with diamond bits. It has been widely used on areas such as road and railway construction, water resources and hydropower and architecture.
Basic data:
|
Drilling Depth |
600m~700m |
||
|
Swive Head |
|
||
|
Spindle Speed (r/min) |
Forward |
48 87 150 230 327 155 280 485 745 1055 |
|
|
Reverse |
52 170 |
||
|
Maximum Torque |
5757N*m |
||
|
Spindle Stroke |
600mm |
||
|
Maximum Cylinder lifting force |
80KN |
||
|
Maximum Cylinder driving force |
60KN |
||
|
Spindle Through-hole |
84mm |
||
|
Hoist |
|
||
|
BobbinDiameter |
230mm |
||
|
Rope Diameter |
15.5mm |
||
|
Rope Capacity(7 floor) |
89m |
||
|
Lifting Capacity(single pipe) |
48KN |
||
|
Bobbin linespeed (the third layer) |
0.46 0.83 1.44 2.21 3.15 m/s |
||
|
Mobile Oil Cylinder Stroke |
460mm |
||
|
Distance of Step Aside The Hole |
280mm |
||
|
Oil Pump |
Wheel oil pump |
||
|
|
Diesel Engine |
Motor |
|
|
Type |
CB-E25 |
CB-E40 |
|
|
Displacement |
25mL/min |
40m/r |
|
|
Normal Rated Speed |
2000 r/min |
2000r/min |
|
|
Normal Pressure |
16MPa |
16MPa |
|
|
Power |
|
|
|
|
Type |
495K |
Y225S-4-B35 |
|
|
Rated Power |
36.8KW |
37KW |
|
|
Rated Speed |
2000r/min |
1480r/min |
|
|
Dimensions |
2850*1050*1900mm |
||
|
Weight(power not incluced) |
1600kg |
||
