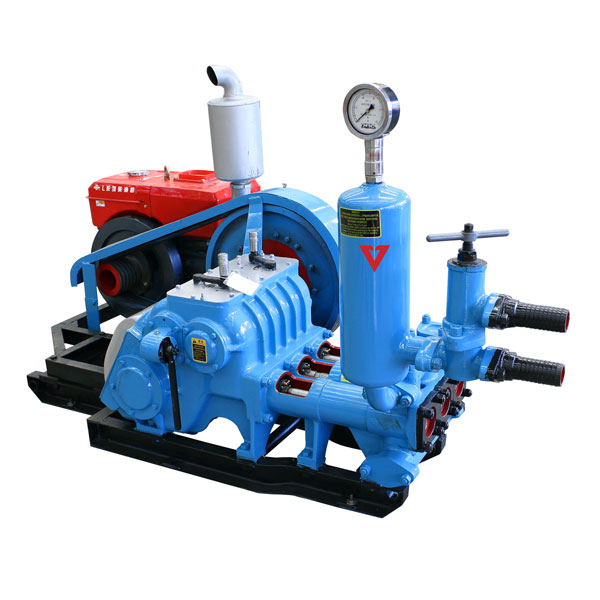

BW-250 Mud Pump

horizontal ,three-cylinder single-acting ,reciprocal piston pump, used to supply flushing fluid to the drilling well in enginee

Main Technical Specifications

BW-250
Type	Horizontal, Three-cylinder single-acting, reciprocal piston pump
stroke	100 mm
Liner Dia	80mm				65mm
Gears	I	II	III	IV	I	II	III	IV
Reciprocate Times(Times/Minute)	200	116	72	42	200	116	72	42
Displacement(liter/minute)	250	145	90	52	166	96	60	35
Pressure(MPa)	2.5	4.5	6	6	4	6	7	7
Dimension rate:	85%
Efficiency	72%
Power	15 Kw
Triangular section belts	B×5 410 mm
Input speed	500 r/min
Suction water height	2.5 m
Suction Pipe Dia	φ76 mm
Discharge Pipe Dia	φ51 mm
Dimensions	1100 × 995 × 650 mm
Weight	500
