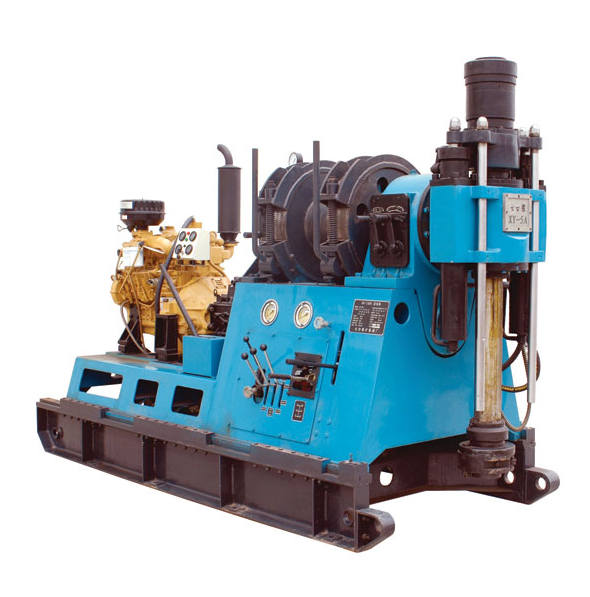

XY-5 is a core drilling rig for deep hole. It not only apply to core drilling with metal alloy or diamond bits but also be used on areas such as engineering geological reconnaissance, hydrological and water well drilling and big diameter core drilling in foundation engineering. It is widely used for mineral exploration, roading and railway construction, hydraulic and hydro-Power engineering and so on.
Basic Bata:
|
Drilling Depth |
1200m~1600m |
|
|
Swive Head |
|
|
|
Spindle Speed (r/min) |
Forward |
5788 137 213 318 402 164 254 398 619 920 1165 |
|
Reverse |
62 180 |
|
|
Maximum Torque |
7600N*m |
|
|
Spindle Stroke |
600mm |
|
|
Maximum Cylinder lifting force |
125KN |
|
|
Maximum Cylinder driving force |
90KN |
|
|
Spindle Through-hole |
84mm |
|
|
Hoist |
|
|
|
BobbinDiameter |
290mm |
|
|
Rope Diameter |
18.5mm |
|
|
Rope Capacity(7 floor) |
145m |
|
|
Lifting Capacity(single pipe) |
60KN |
|
|
Bobbin linespeed (the third layer) |
0.68 1.06 1.65 2.57 3.83 4.84 m/s |
|
|
Mobile Oil Cylinder Stroke |
500mm |
|
|
Distance of Step Aside The Hole |
300mm |
|
|
Oil Pump |
Wheel oil pump |
|
|
Type |
CBT-E525 |
|
|
Displacement |
25mL/min |
|
|
Normal Rated Speed |
1500 r/min |
|
|
Normal Pressure |
16MPa |
|
|
Power |
Diesel Engine |
|
|
Type |
YC4108G |
|
|
Rated Power |
58KW |
|
|
Rated Speed |
2400r/min |
|
|
Dimensions |
3300*1250*2100mm |
|
|
Weight(power not incluced) |
3500kg |
|
